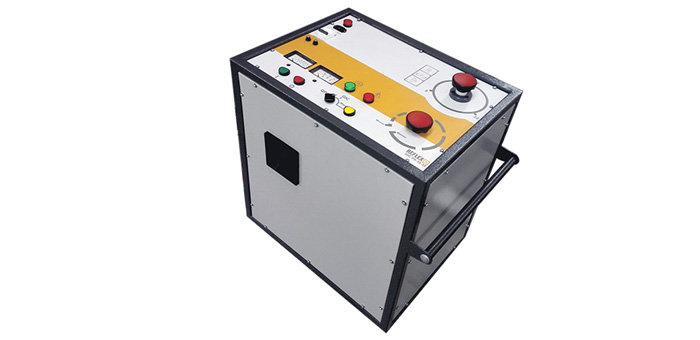

The HVSG1000-16 is a 16kV surge wave pulse generators, specially designed to locate faults in power cables. The output voltage can be continuously adjusted in the ranges 0-4kV, 0-8kV and 0-16kV.
An energy peak of 1000J at each range provides the power needed to accurately pinpoint an acoustic cable fault in conjunction with the listening set. It incorporates earthing that in case of disconnection the internal capacitors and the installation tested are automatically discharged.
The earthing, power and AT terminals are located on the back of the unit and are easily accessible to the operator.
Optionally, a filter can be incorporated for the ARC (Arc Reflection Method) method, as well as the high voltage source function for dielectric continuous current testing.
Compact, portable and sturdy unit.
Voltage adjustable continuously.
Automatic grounding.
Optimized de-energization energy by means of a capacitor switch.
High energy peak for accurate and effective location
